Overview:
European-style cable distribution box is a cable-based engineering equipment widely used in power distribution network systems in recent years.
Its main features are two-way door opening, using wall bushings as connecting busbars, small length,
The cables are clearly arranged and the three-core cables do not require large-span crossovers. The electricity it uses
Cable glands comply with DIN47636 standard. Generally, bolted connection type with rated current 630A is used.
Cable connector.
Working Condition:
- Ambient temperature: Maximum temperature: +40℃, minimum temperature -30℃;
- Wind speed: Equivalent to 34m/s (not more than 700Pa);
- Humidity: Daily average relative humidity is not more than 95%, monthly average relative humidity is not more than
95%; - Shockproof: Horizontal acceleration is not more than 0.4m/s2, vertical acceleration is not more than 0.15m/s2
- Installation site inclination: not more than 3°;
- Installation environment: The surrounding air is not obviously polluted by corrosive, flammable gases, water vapor, etc., and there is no severe vibration at the installation site.
Note: Please consult with our company when ordering this product beyond the above conditions.
Technical Parameters of Cable Junction Box With Switch：
|
Project |
Parameter |
||
|
Rated voltage |
12kv |
24kv |
35kv |
|
Rated current |
630A |
630A |
630A |
|
Power frequency withstand voltage (phase to phase, phase to ground) |
42/1min |
79/1min |
95/1min |
|
Lightning impulse withstand voltage (phase to phase, phase to ground) |
75kv |
95kv |
195kv |
|
Partial discharge (13kV) |
<10pC |
<10pC |
<10pC |
|
Insulation resistance |
≥ 2000MΩ |
≥ 2000MΩ |
≥ 2000MΩ |
|
Rated thermal current (2s) |
20kA |
20kA |
20kA |
|
Rated dynamic stability current |
50kA |
50kA |
50kA |
|
Rated breaking current |
630kA |
630kA |
630kA |
|
Rated making current |
50kA |
50kA |
50kA |
|
Full load current breaking times |
>100 Times |
>100 Times |
>100 Times |
|
Mechanical life |
3000 |
3000 |
3000 |
|
Protection level |
IP33 |
IP33 |
IP33 |
Technical Parameters of Cable Junction Box Without Switch:
|
Project |
Parameter |
||
|
Rated voltage |
12kv |
24kv |
35kv |
|
Rated current |
630A |
630A |
630A |
|
Power frequency withstand voltage |
42/1min |
79/1min |
95/1min |
|
Lightning impulse voltage |
75kv |
95kv |
225kv |
|
Insulation resistance |
≥ 2000MΩ |
≥ 2000MΩ |
≥ 2000MΩ |
|
Partial discharge (13kV) |
<10pC |
<10pC |
<10pC |
|
Rated thermal current (2s) |
20kA/2s |
20kA/2s |
20kA/2s |
|
Rated dynamic stability current |
50kA/0.3s |
50kA/0.3s |
50kA/0.3s |
|
Loop resistance |
≤ 40μΩ |
≤ 40μΩ |
≤ 40μΩ |
|
Protection level |
<10pC |
<10pC |
<10pC |

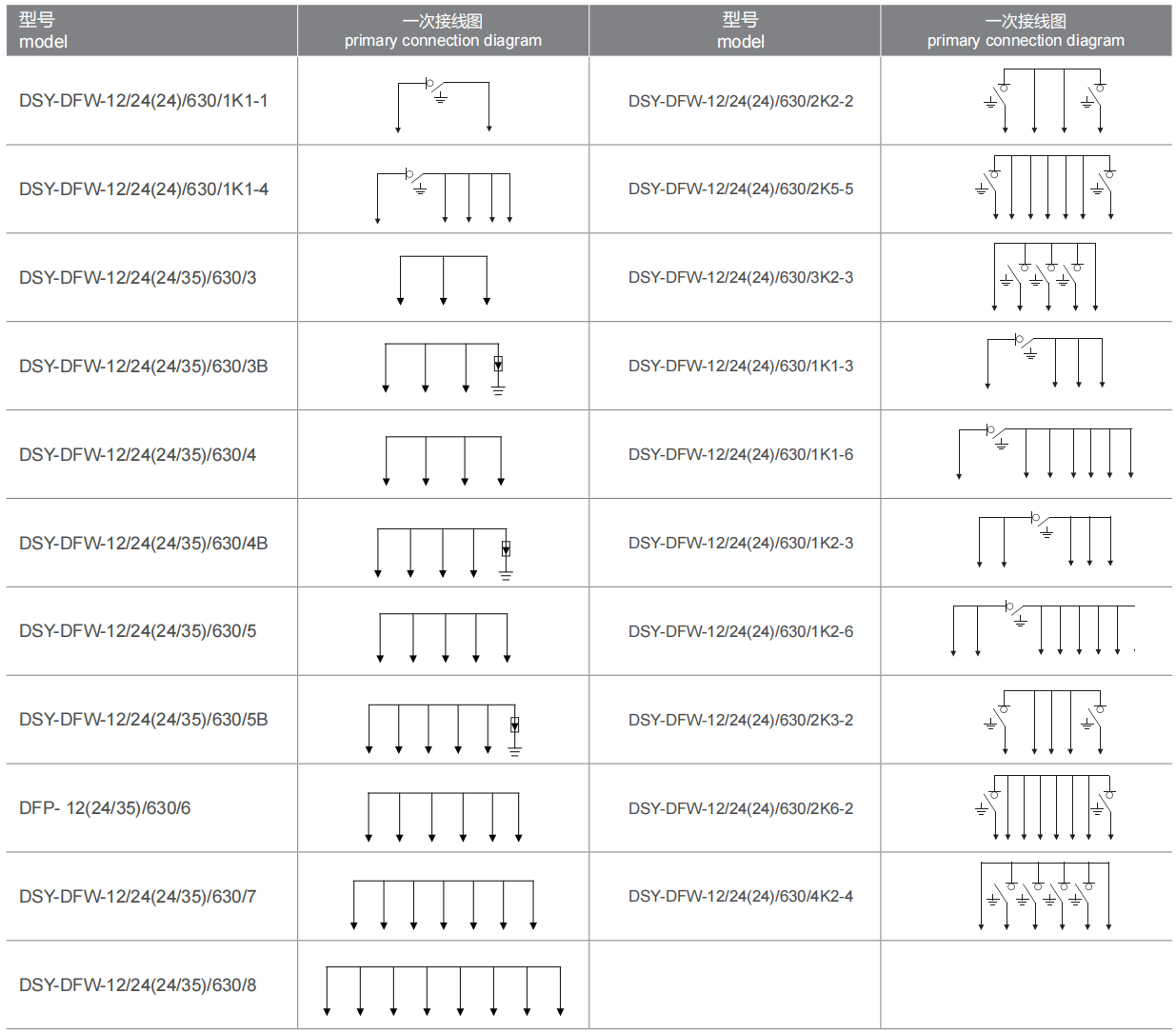

Typical Wiring Scheme of Sweitchgear:
Note: Users can choose lightning arresters, short-circuit fault indicators, fuses, etc.
European Cable Junction Box Foundation Diagram:
